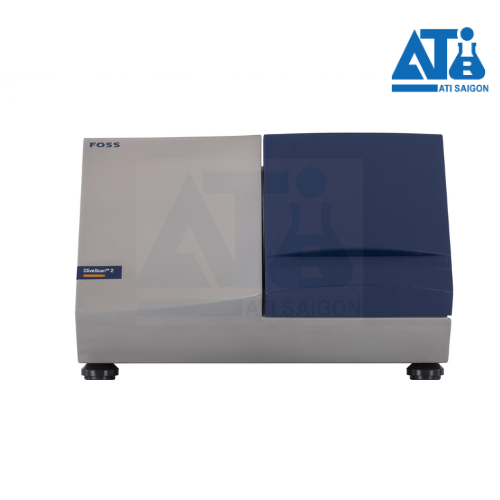

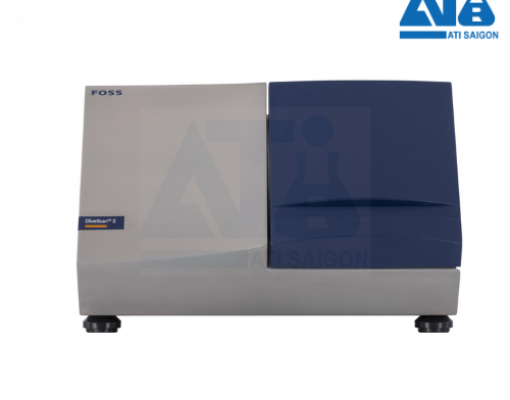

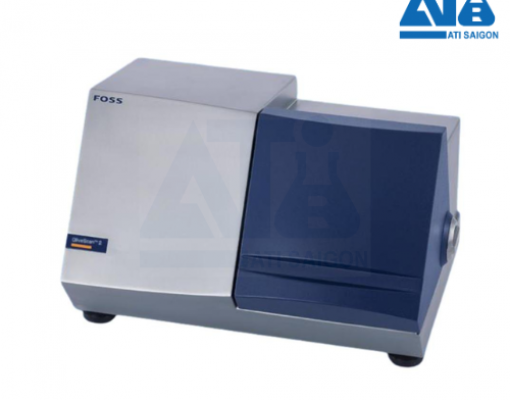

Model: OliveScan™ 2
Manufacturer: FOSS – Denmark
OliveScan™ 2 is a versatile solution for testing the quality of whole olives for payment and for controlling olive paste and pomace in olive oil production. The instrument is based on the well-proven OliveScan 2 near infrared (NIR) technology platform.

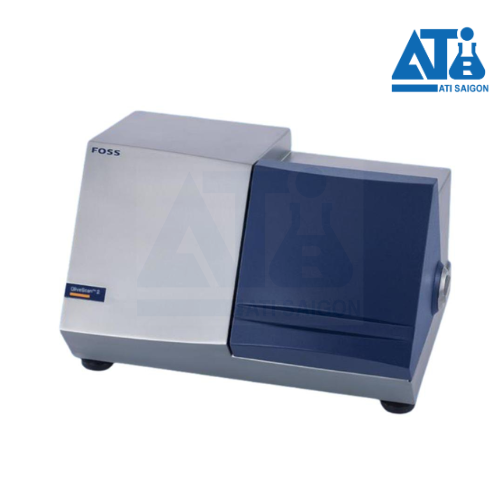

Model: OliveScan™ 2
Manufacturer: FOSS – Denmark
Product Description:
The Foss OliveScan™ 2 Olive Quality Analyzer is a versatile solution for assessing the quality of whole olives for payment and for monitoring olive paste and pomace during olive oil production. This device is based on the proven FoodScan™ 2 NIR technology platform.
Fast and Easy Testing

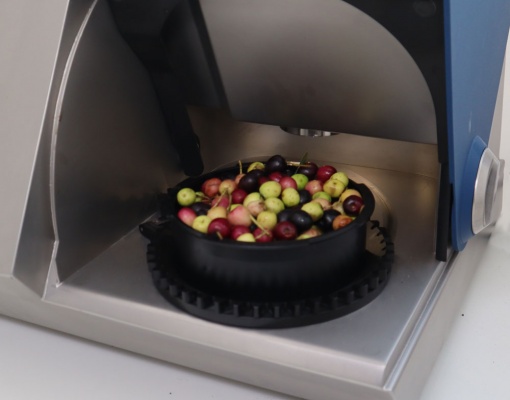

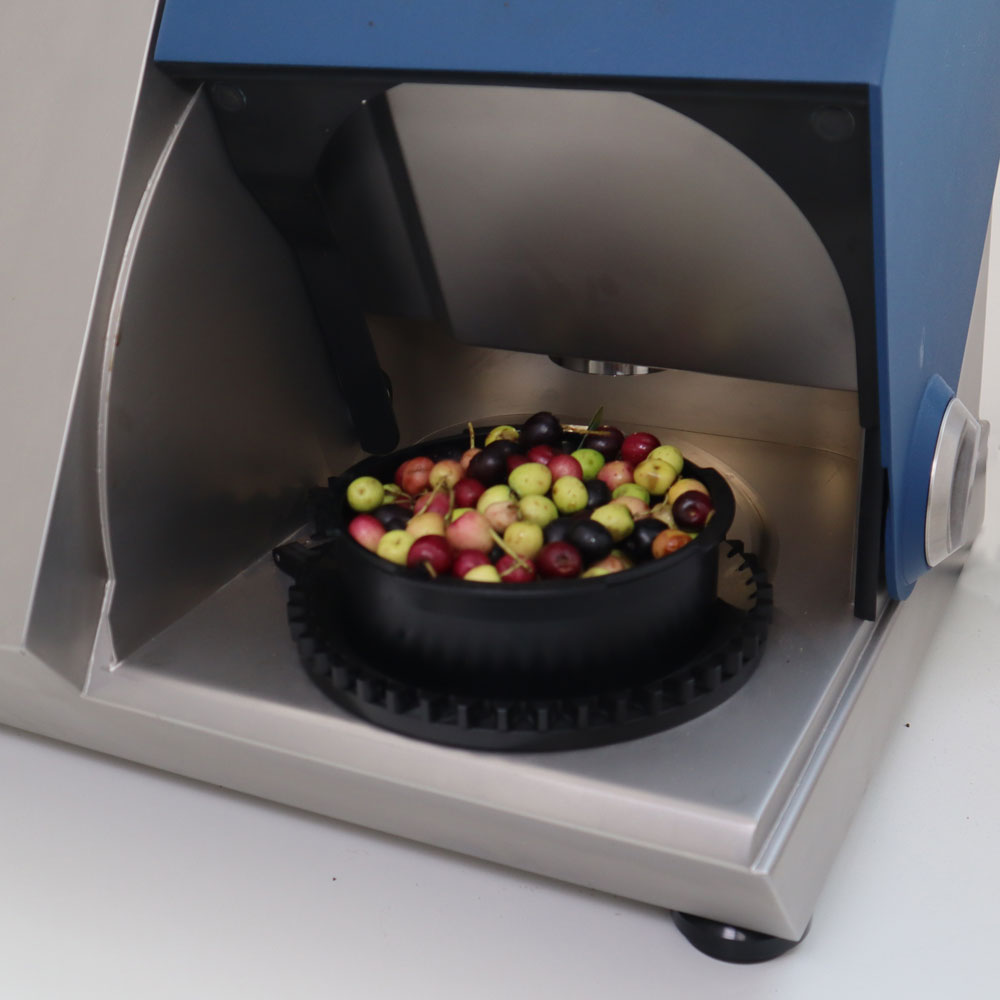

Avoid time-consuming sample preparation. Simply place whole olives into the specially designed high-walled sample cup. Oil and moisture content results are delivered within 30 seconds.
Accurate Results

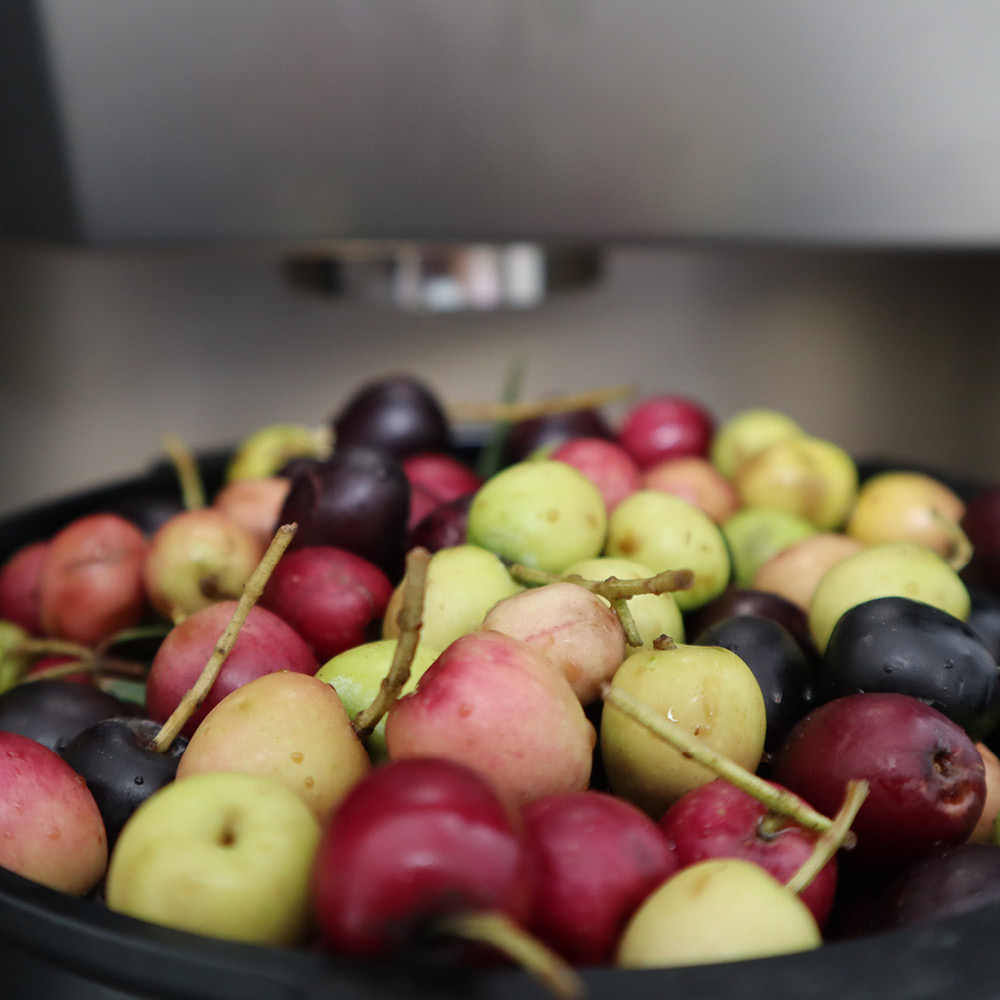

Obtain instant, objective measurements that truly represent the sample. The NIR transmission technology penetrates deeply into the olives, with up to 18 sub-samples analyzing multiple areas across the sample. The high-walled sample cup accommodates the round shape of the olives while providing sufficient sample volume for reliable measurement. Any measurement interference caused by gaps between olives is automatically ignored.
Control Olive Oil and Paste Production

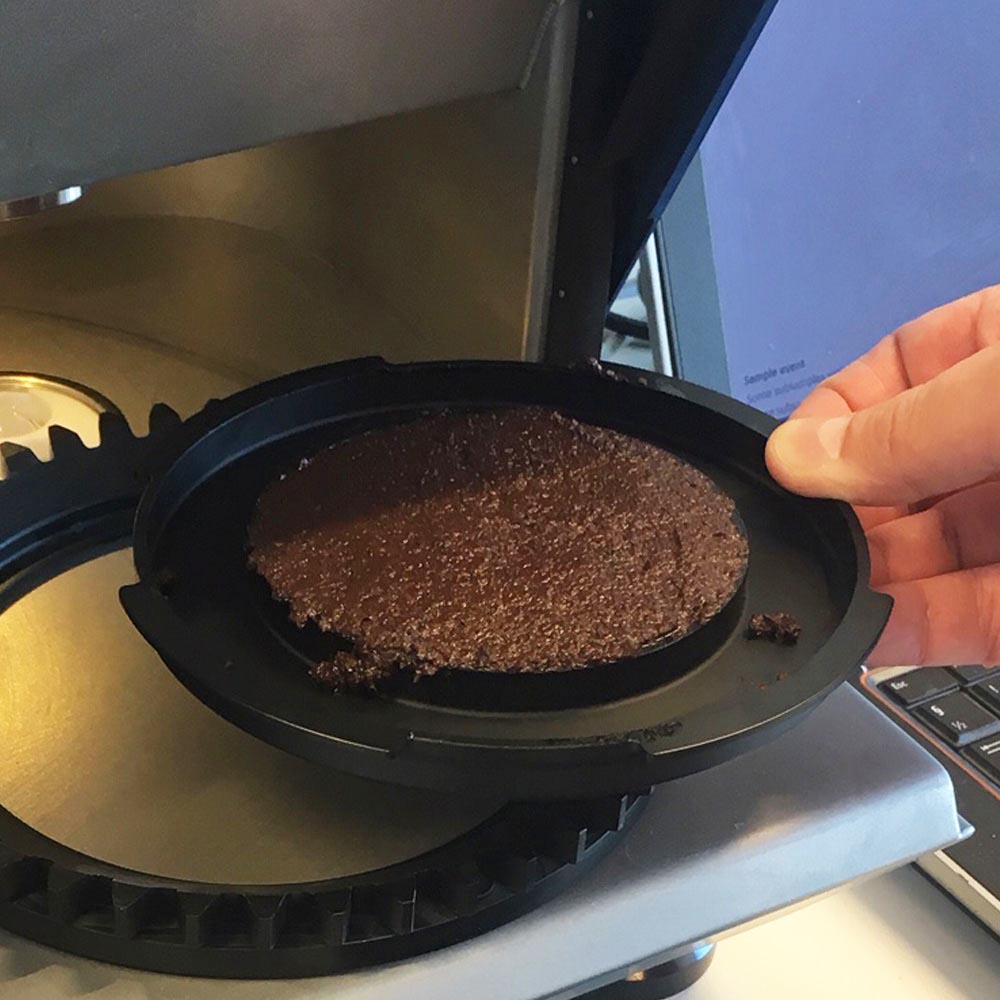

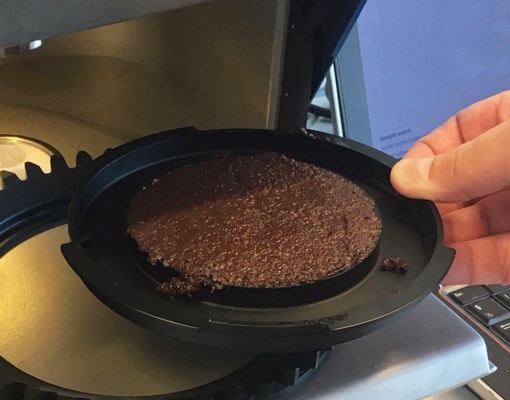

The system can also analyze olive paste and pomace. For example, testing pomace for residual oil after pressing helps prevent oil loss and achieve optimal yield with minimal resources.
Features:
Technical Specifications:
| Power supply | 100-240 VAC, 50-60 Hz. |
| Power consumption | Max 110 VA |
| Ambient temperature | 5-40 ºC (41–104 ºF) |
| Altitude | Up to 2000 m |
| Relative humidity | <93 % RH |
| Minimum PC requirement | Dual core 2.8 GHz 8 GB RAM memory 2 100 Mbit Ethernet interface (1 if the PC is not to be connected to networking software) Display with 1024 x 768 resolution 20 GB free disc space recommended 1 USB port |
| Operating system required | Windows 11 (64 bit), Enterprise, Windows 10 (64 bit) Pro, Enterprise |
| Software | ISIScan Nova |
| Technology | NIR transmission, wavelength 850-1100 nm NIR reflection, wavelength 400 – 700 nm Monochromator based |
| Barcode reader support | HID-POS |
| Protection class |
IP 43 |
|
Analysis time |
App. 25 sec. with 18 independent samples (large cup) App. 20 sec. with 7 independent samples (medium cup) App. 15 sec. with 3 independent sub samples (small cup) |
| Check cell | Included |
| Weight | 29,5 kg |
| Dimensions (w x d x h) | 52 x 49 x 35 cm (20.8 x 19.6 x 14 inches) |
| Recommended bench space (w x d) | 100 x 70 cm (40 x 28 inches) if operated with external PC |
