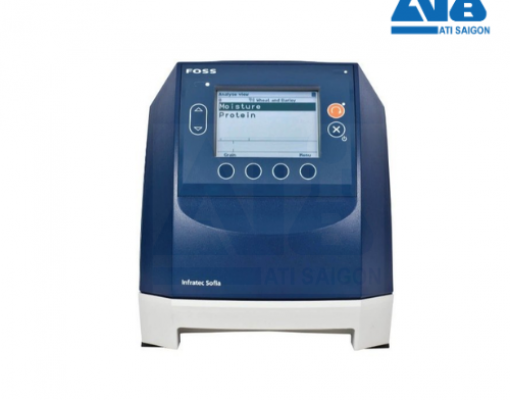

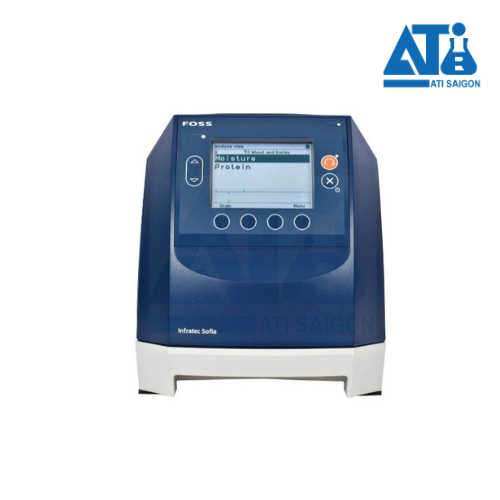

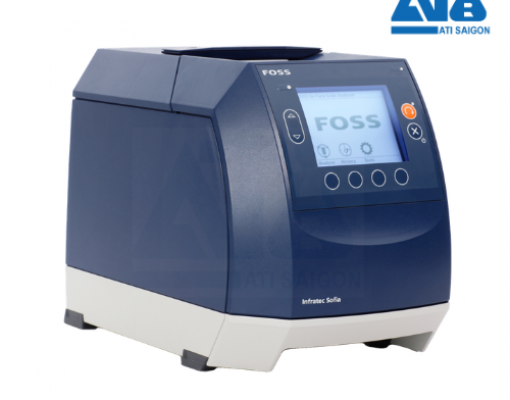

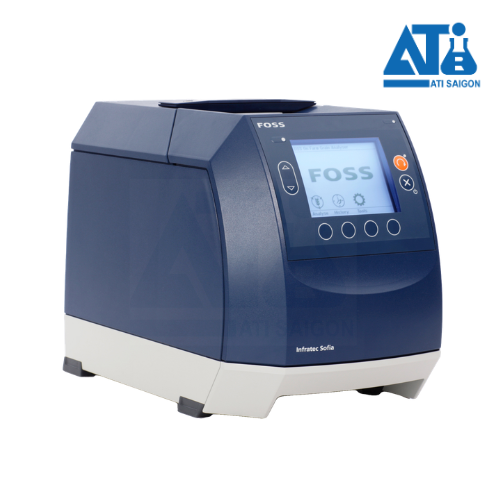

Model: Infratec™ Sofia
Manufacturer: FOSS – Denmark
Infratec™ Sofia brings the value of precision grain testing to grain receival sites of all sizes. Mobile, easy to use.
Model: Infratec™ Sofia
Manufacturer: FOSS – Denmark
Product Description:
Accuracy Combined with Portability: Know your grain quality and make critical decisions on grading and marketing. The Infratec Sofia NIR spectrometer delivers reliable measurements based on the same comprehensive calibration database used for Infratec instruments, developed over many years in close collaboration with the grain industry.
On-Site Decision Making: With intelligent on-site grain analysis, you can ensure fair pricing for incoming deliveries and make timely processing decisions to optimize the overall value of your grain.

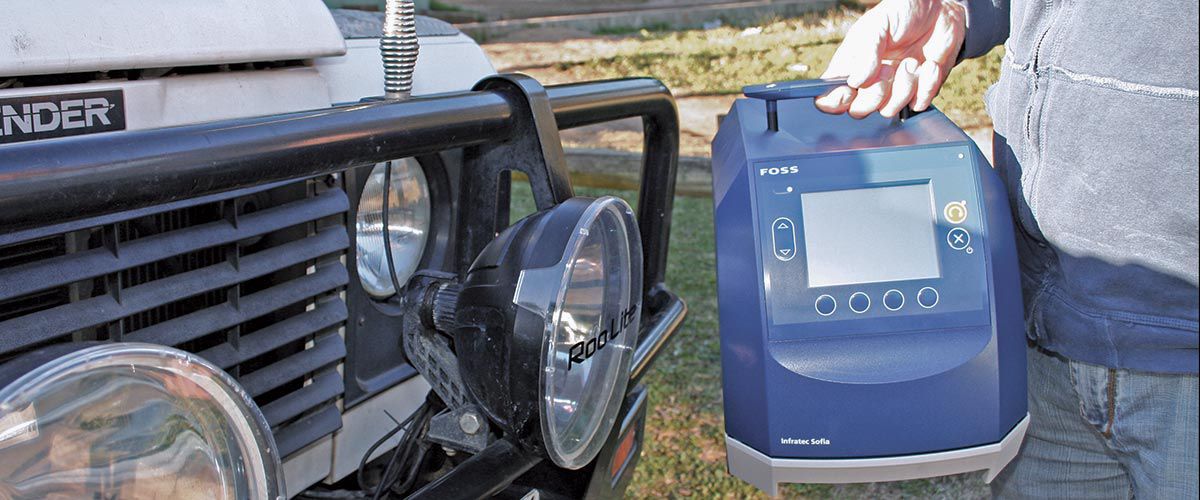

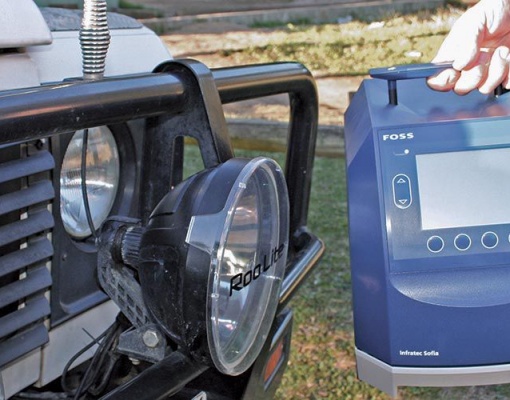

Portability: The Infratec Sofia is a robust and truly portable solution, ideal for modern low-infrastructure intake locations. It enables data collection and initial grading close to farmers. The analyzer weighs approximately 9 kg and operates on 240 VAC or 12 VDC power supply. No grinding or sample preparation is required.
Specifications:
Sample Types: Wheat, barley, durum wheat, maize, oilseeds (including rapeseed), soybeans, and more.
Measured Parameters: Moisture, protein, oil, and wet gluten.
Technology: Near Infrared Spectroscopy (NIR transmittance).
Technical specification
| Dimensions (W x D x H) | 255 x 390 x 295 mm |
| Weight | 9 kg |
| Measurement mode | Transmittance |
| Wavelength range | 850 - 1050 nm |
| Analysis time | 2 minutes and 40 seconds for 10 sub-samples |
| Detector | Silicon Linear Array |
| Optical bandwidth | 7 nm |
| Number of data points/scan | 100 |
| Absorbance range | 1-4 AU |
| Voltage supply | 100-240 V AC *, frequency 50-60 Hz, Class 1, protective earth |
| Ambient temperature | 0 - 45°C |
| Storage temperature | -20 to 70°C |
| Ambient humidity | < 93% RH, cyclic up to 100% RH |
| Mechanical environment | Stationary when in use, in vehicles |
| EMC environment | Light industry, industry and agricultural machines |
*Mains supply voltage fluctuations not exceeding ±10% of the rated voltage.
