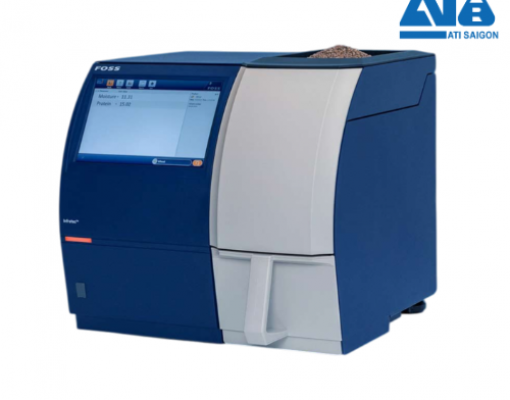

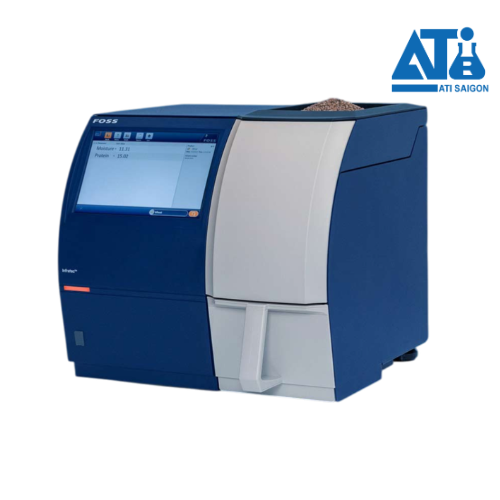

Model: Infratec™
Manufacturer: FOSS – Denmark
The Infratec™ Near Infrared (NIR) Spectrometer for Grain Analysis utilizes the latest advancements in NIR technology, connectivity, and usability.
Model: Infratec™
Manufacturer: FOSS – Denmark
Product Description
NIR Near-Infrared Spectroscopy The Foss Infratec NIR grain analyzer leverages the latest advances in NIR technology, connectivity, and usability. It provides a reliable platform for any grain handling operation, making quality control easier and less time-consuming.
Reliable Results Comprehensive ANN calibrations combined with excellent repeatability and transferability ensure consistent and accurate measurements. Advanced connectivity allows monitoring of instrument performance and operator SOP compliance from anywhere. The robust IP54-rated instrument withstands significant fluctuations in temperature and humidity.

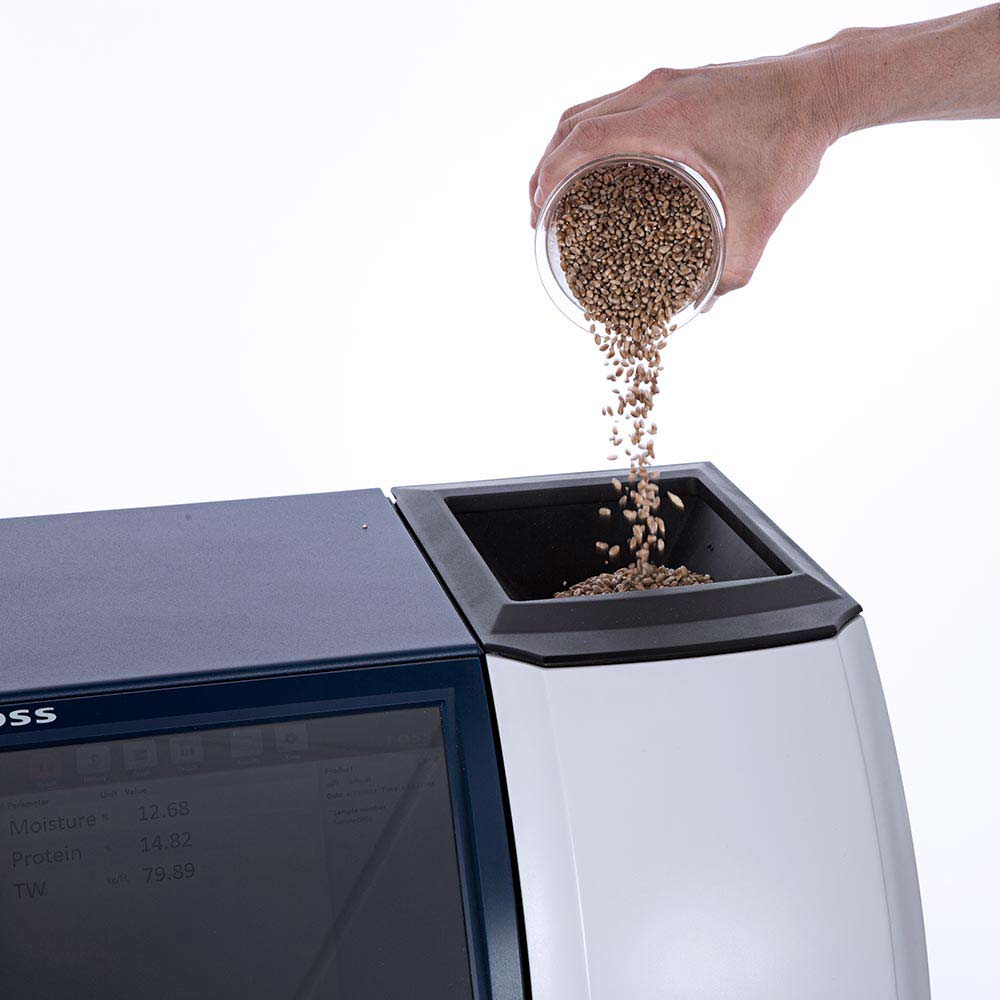

Easy to Use Operates via touchscreen with an intuitive interface and fast, automatic start-up—simply pour the sample in. The refined user interface allows customized PIN access to functional areas according to operator level.

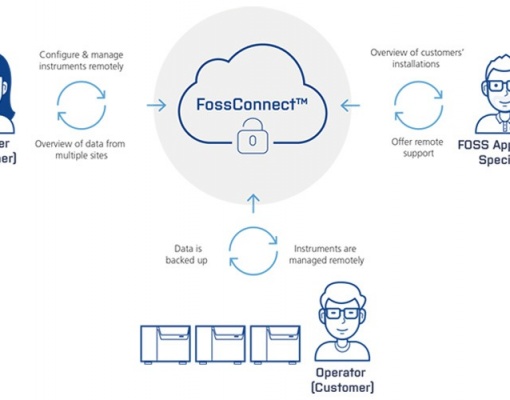

Digital Connectivity Connectivity enables instant data backup and recovery, with proactive quality assurance via FossAssure™. Service costs are predictable with remote service subscriptions at a low fixed fee.
Features:
Technical Specifications:
| Dimensions (W x D x H) | 410 x 460 x 415 mm | |
| Weight | 28.5 kg (31 kg with test weight module) | |
| Voltage | 220-240V 50-60Hz or 110-120V | |
| Rated current | 1.0A (110-120V) / 0.5A (220-240V) | |
| Fuse | T 5 A (250V) | |
| Power consumption | 85 W (24V) | |
| Input supply | 24V DC from FOSS approved power supply | |
| Spectrometer | Scanning monochromator | |
| Wavelength range | 570 - 1100 nm | |
| Detector | Silicon | |
| Optimal bandwidth | 7 nm | |
| Number of data points/scan | 1061 | |
| Mode | Transmittance | |
| Light source | Tungsten halogen lamp | |
| Interface | Ethernet, 3 x USB (full function) including one on the instrument front for easy access | |
| Display | 10 inch capacitive touch screen | |
| Noise Level | < 70 dB(A) | |
| Degree of protection | IP 54 | |
|
Analysis time |
Less than 60 seconds for 10 sub-samples including test weight analysis and as little as 40 seconds when dynamic sub-sampling enabled |
|
|
Path length |
Variable cell automatically controlled from 6 - 33 mm |
|
|
Result report |
Presented on the display as default. Can be sent to PC/LIMS and the printer port |
|
|
Outlier function |
Warnings and options for the presentation of the result |
|
|
Software |
Menu driven with touch screen interface |
|
|
Regression programs |
ANN (Artificial Neural Network); PLS (Partial Least Squares) |
|
|
No. of sub-samples |
Between 1 and 30 sub-samples (10 sub-samples standard) |
|
