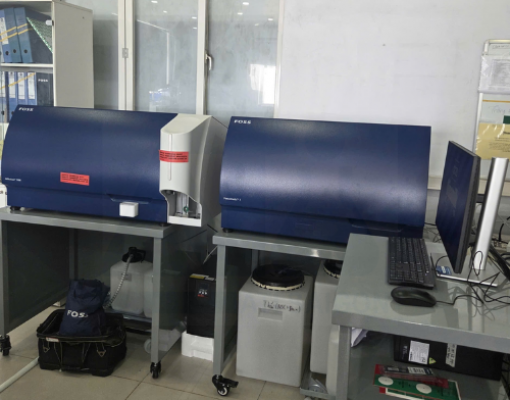

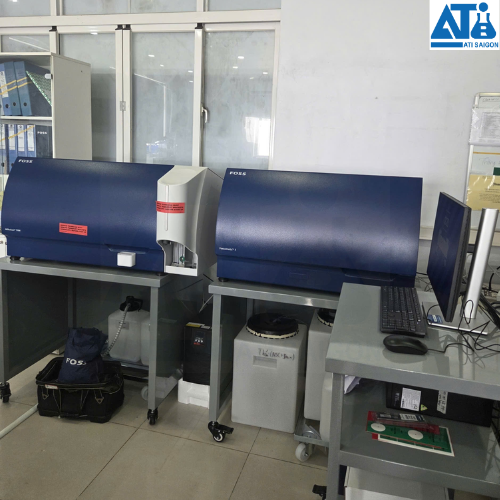

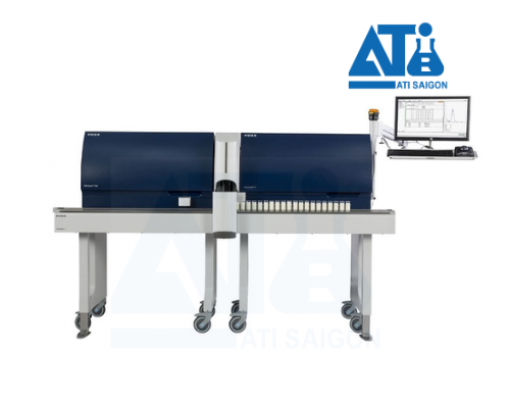

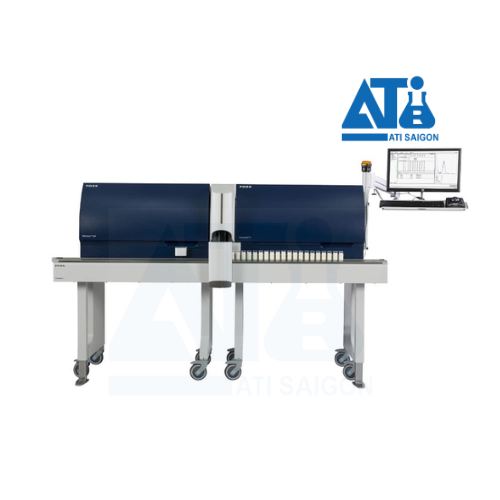

CombiFoss™ 7 provides raw milk testing for 19 parameters in 6 seconds, including somatic cell count (SCC) and differential SCC. Seamless integration of MilkoScan™ 7 RM (FTIR) and Fossomatic™ 7 (flow cytometry) in one analysis unit.
Model: CombiFoss™ 7
Description:
Value
Testing an unparalleled 19 parameters in just six seconds, the CombiFoss™ 7 provides a unique platform on which to base your milk-testing business.
Sample type
Raw milk (cow, goat, sheep, buffalo).
Parameters
Fat, protein (true and crude), casein, lactose, solids (SnF and TS), urea, citric acid, fatty acid profiling, Free Fatty Acids (FFA), freezing point depression, pH, ketosis screening (BHB and acetone), untargeted raw milk screening (adulteration), total somatic cell count (SCC) and differential somatic cell count (DSCC).
Technical Data:
Performance
Measuring range: 0 – 10 mill cells/ml
Performance range: 0.1 – 1.5 mill
Repeatability*: CV < 6% 100-299k SCC/ml; CV < 4% 300-499k SCC/ml; CV < 3% 500-1500k SCC/ml
Accuracy: < 10% relative mean diff. from DMSCC (Direct Microscopic Somatic Cell Count)
Carry-over: < 1% relative
Sample types: Raw milk (cow, goat, sheep, buffalo)
*CV = Coefficient of variation (STDev/AVG) x 100. (STDev = Standard deviation. AVG = Average)
Application data
Analysis capacity: 100, 200, 300, 400, 500 or 600 samples per hour
Sample intake: 2.5 ml (programmable 2.0 – 5.0 ml)
Required sample temperature 37- 42 °C (86-107.6 F)
Working factor 100
Standards and approvals
Fossomatic™ 7 is CE-labelled and complies with the following directives and regulations:
EMC (ElectroMagnetic Compatibility) Directive 2014/30/EU
LVD (Low Voltage) Directive 2014/35/EU
Machinery Safety Directive 2006/42/EC
Regulation (EC) 1272/2008 on classification, labelling and packaging of substances and mixture, CLP (EC)
WEEE Directive 2012/19/EU
Packaging and packaging waste Directive 94/62/EC
REACH 1907/2006/EC
Fossomatic technology complies with
AOAC
ISO 13366-2 / IDF 148-2:2006
Laser approval (FDA), IEC 60825-1
FDA/NCIMS and MicroVal (EURL) approved for enumeration of somatic cells in raw cow’s milk on Fossomatic™ 7/7DC (2016LR62/2016LR63)
Specifications MilkoScan™ 7 RM
Most of the calibrations are using multiple wavelengths selected freely from the entire Mid-IR spectrum in order to optimise robustness and accuracy. Compared to traditional filter calibrations, they are called full spectrum calibrations.
Performance
|
Component |
Measuring range |
Performance range |
Repeatability |
Accuracy Bulk |
Accuracy Single cow |
|
Fat |
0-15% |
2-15% |
CV < 0.5% |
CV < 1.0% |
CV < 1.5% |
|
Protein |
0-10% |
2-10% |
CV < 0.5% |
CV < 0.9% |
CV < 1.5% |
|
Lactose |
0-10% |
2-10% |
CV < 0.5% |
CV < 0.9% |
CV < 1.5% |
|
Solids |
0-20% |
2-20% |
CV < 0.5% |
CV < 1.0% |
CV < 1.5% |
|
Urea patented |
10-100 mg/dl |
10-100 mg/dl |
Sd < 1.5 mg/dl |
Sd < 3 mg/dl |
Sd < 3.5 mg/dl |
|
Citric acid |
0.1-0.5% |
0.1-0.5% |
Sd < 0.005% |
Sd < 0.01% |
Sd < 0.015% |
|
FPD (screening) |
400-600 m°C |
450-550 m°C |
Sd < 0.5 m°C |
Sd < 4 m°C |
N/A |
