Tunnel pasteurizers are used to eliminate any residual bacteria in food and beverage products after sealing.
The HT205 system is a mini tunnel pasteurizer. Adjustable parameters allow the operator to replicate a wide range of full-size production scenarios while minimizing power and water usage, as well as the time and product quantity needed for pasteurization.

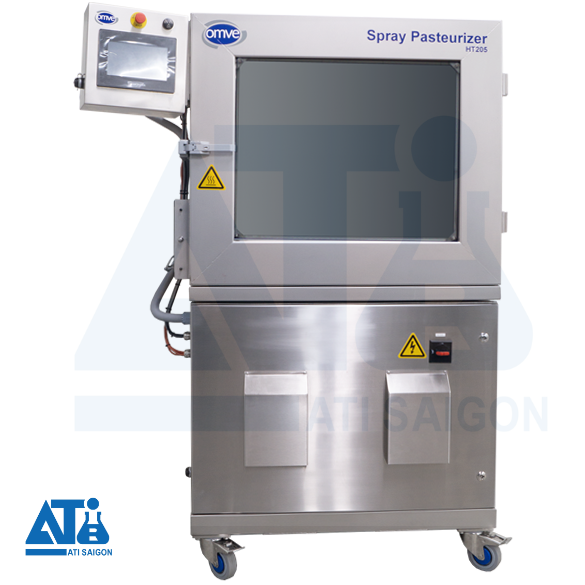

HT205 Spray Pasteurizer
Model: HT205
Hãng sản xuất: OMVE - Netherlands
Product Description:

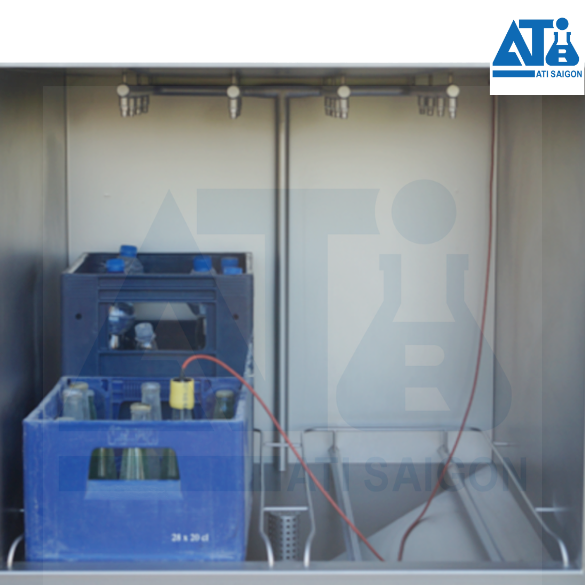

The OMVE spray pasteurizers facilitate the validation of beer & carbonated products by pasteurization mimicking industrial tunnel pasteurizers. Our spray pasteurizers are compact, plug & play systems with built-in electric or steam-heated boilers, ideal for simulation of a time-temperature curve to meet PU typically used in the beverage industry. The nozzles in the chamber spray water evenly down on the packaging in the crates. With highly accurate temperature control by temperature probes in the product and uniform heat treatment, over-pasteurization of the product is limited to a minimum. The OMVE laboratory spray pasteurizer is easy to operate and can handle up to four crates per run
Working Principle:

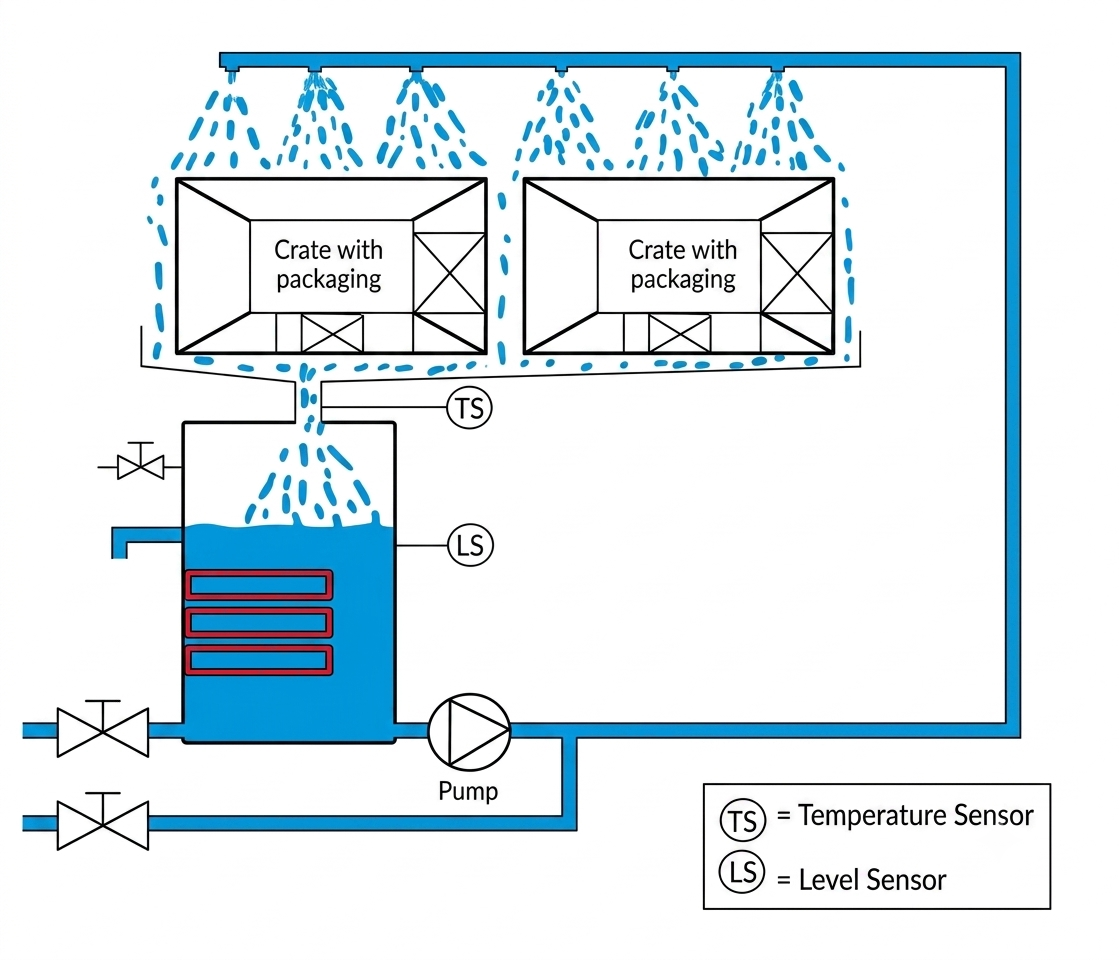

Water is pumped from the re-circulation vessel, through the nozzles, back to the recirculation vessel. Inside the circulation vessel, three 10kW electrical boilers heat the water up to a maximum of 90°C. The temperature can be set to the required set point. After reaching pasteurization time, water is introduced to the system by opening the water supply valve, cooling the packaging to the set temperature
Features & Benefits :
Simulates industrial tunnel pasteurizers
Touch screen operation
Fully programmable temperature-time curve
Data logging
Applications:
Beverages
Soups & sauces
Package testing
Specifications:
