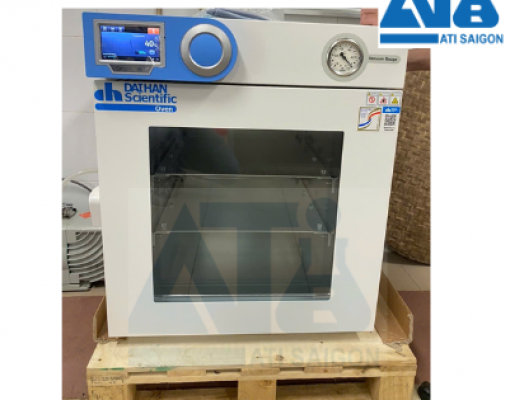

DaiHan SOV-70 Vacuum Drying Oven (70L; 10~750mmHg, 200℃)

DaiHan SOV-70 Vacuum Drying Oven (70L; 10~750mmHg, 200℃)

Model: SOV-70

Origin: Korea

Technical Data:

• Capacity: 70 Lit
• Vacuum range & level & rate: 10 ~ 750 mmHg; 0.63 mbar; 0.39 mbar/hr
• Temp.:
• Range / Sensor Ambient: R/T +10℃ to 200 ℃; PT100
• Accuracy: ±0.5℃ at 100℃ and 150℃
• Uniformity: ±2.5℃ at 100℃; ±3.5℃ at 150℃
• Heating power/consumption: 350 W × 2 ea; 450 W × 2 ea
• Heat-up time: 80 min to 100℃; 100 min to 150℃
• Timer & alarm: 99 hr 59 min (with delay / continuous run), error status & timer-end
• Display: 4" full touch screen TFT LCD
• Controller: Smart-Lab Controller
• Resolution: Control ±1.0℃; Display ±1.0℃
• Shelves: Included 2 ea aluminum shelves
• Safety circuit: Over temp and over current protector, sensor error detector, leakage breaker
• Material: Internal stainless-steel (#304); external powder coated steel; window tempered safety glass 12T, polycarbonate 5T for safety
• Dimension (W × D × H):
• Interior (mm): 400 × 435 × 400
• Exterior (mm): 618 × 620 × 682
• Net weight: 85 kg
• Power consumption: 1.6 kW
• Power supply: 1 phase, AC 230 V, 50 / 60 Hz
