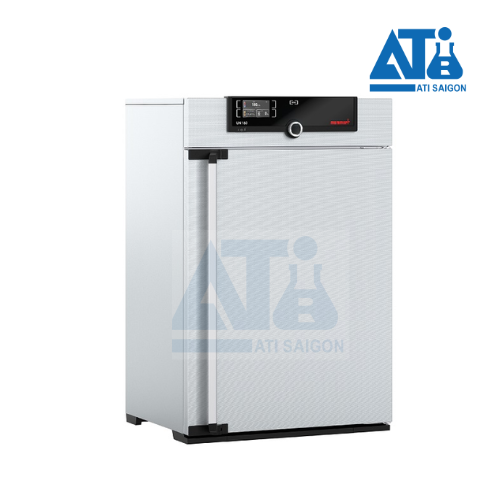

Memmert Universal oven UN160

Memmert Universal oven UN160

Model: UN160

Manufacturer: Memmert - Germany

Product description:

• Visual digital temperature sensor.
• Overheat protection with a two-stage safety system.
• PID microprocessor temperature controller with an integrated alarm system.
• Large-area heating system, corrosion-resistant on the outside of the inner tank.
• Advanced drainage system, easy to drain water completely.
• Inner tank stamped from stainless steel

Technical Specifications:

• Volume: 161 liters
• Internal dimensions: w 560 x h 720 x d 400 mm
• External dimensions: w 745 x h 1104 x d 584 mm
• Number of grids supplied: 2
• Maximum number of grids: 8
• Operating temperature range: at least 5°C above ambient temperature to 300°C
• Setting accuracy: up to 99.9°C: 0.1°C; from 100°C: 0.5°C
• Use Pt100 temperature sensor DIN Class A
• Natural air convection
• ControlCOCKPIT: SingleDISPLAY, adaptive multifunctional digital PID-microprocessor controller with high-definition TFT-color display
• Temperature control: electronic overtemperature monitor and mechanical temperature limiter TB, protection class 1 according to DIN 12 880, self-switching off at approx. 20°C above nominal temperature
• Self-diagnostics for fault analysis
• Ethernet interface
• Door: fully insulated stainless steel door with 2-point locking
• Textured stainless steel casing, scratch-resistant, robust and durable, rear zinc-plated steel
• Internal data logger with a storage capacity of at least 10 years
• 100% AtmoSAFE
• Power supply: 230 V, 50/60 Hz
• Power consumption: approx. 3200 W
• Ambient temperature: 5 – 40°C
• Humidity: max. 80% RH, non-condensing
