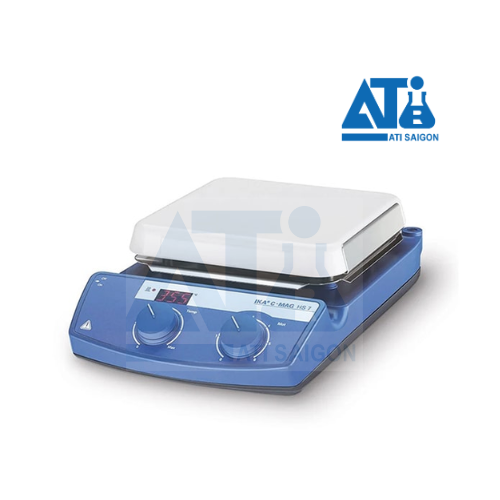

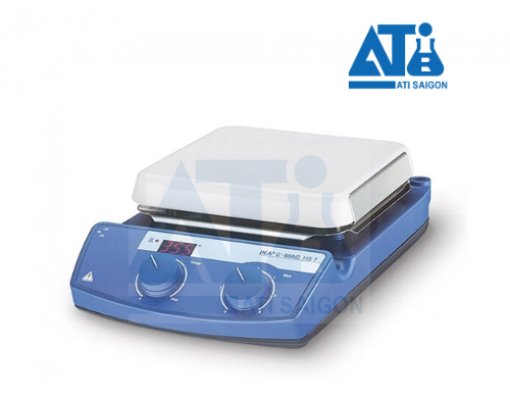

IKA Magnetic Stirrers C-MAG HS 7

IKA Magnetic Stirrers

Model:  C-MAG HS 7

Description:

Magnetic stirrer with heating and ceramic heating plate which offers excellent chemical resistance.

• Powerful motor for stirring quantities of up to 10 l (H2O)
• Fixed safety circuit of 550 °C
• Hot Top indicator >> hot surface warning to prevent burns!
• Exact temperature setting via digital display (LED)

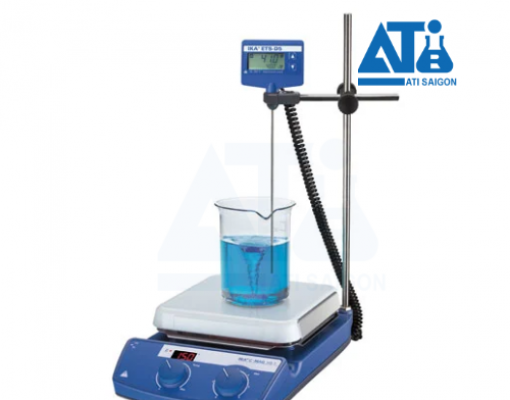

• Bushing according to DIN 12878 for connecting a contact thermometer, e.g. ETS-D5, enables precise temperature control
• Digital error code display
• Elevated control panel for protection against leaking liquids

Technical Data:

• Number of stirring positions 1
• Stirring quantity max. per stirring position (H2O) 10 l
• Maximum load 15 kg
• Motor rating output 1.5 W
• Direction of rotation left
• Speed adjustment scale 0 - 6
• Speed range 100 - 1500 rpm
• Stirring bar length max. 80 mm
• Self-heating of the set-up plate by max. stirring (RT:22°C/duration:1h) +2 K
• Heat output 1000 W
• Temperature display set-value LED
• Heating temperature range 50 - 500 °C
• Heat control Turning knob
• Temperature setting resolution of heating plate 5 K
• Connection for ext. temperature sensor ETS-D5
• Fixed safety circuit 550 °C
• Set-up plate material ceramic
• Set-up plate dimensions 180 x 180 mm
• Heating rate (1l H2O in H1500) 5 K/min
• Dimensions (W x H x D) 220 x 105 x 335 mm
• Weight 5 kg
• Permissible ambient temperature 5 - 40 °C
• Permissible relative humidity 80 %
• Protection class according to DIN EN 60529 IP 21
• Voltage 230 V
• Frequency 50/60 Hz
• Power input 1020 W
